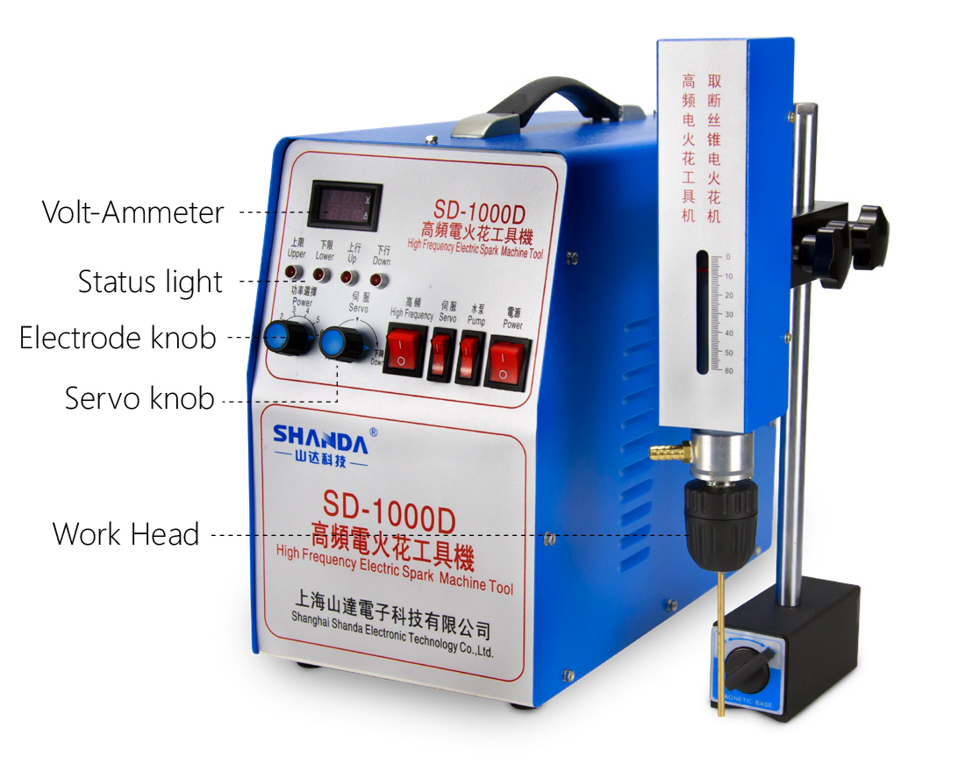

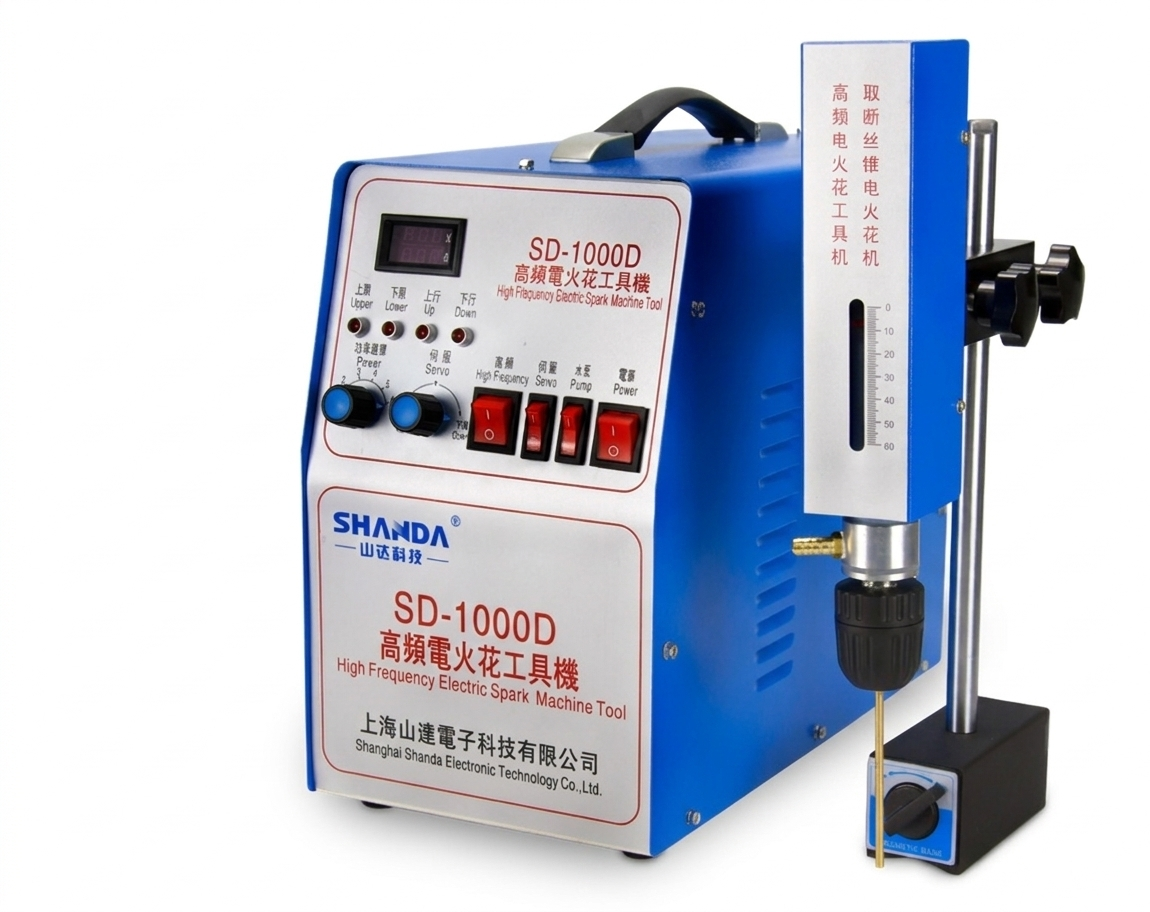

EDM Tap Remover SD-1000D and SD-600D

The SD-1000D and SD-600D EDM Tap Remover is designed for the fast and precise removal of broken taps and cutting tools from workpieces without causing damage to the surrounding material.

Using the principle of Electrical Discharge Machining (EDM), the machine erodes the broken tool through electrical discharge rather than mechanical force. This ensures that the workpiece is not subjected to stress, protecting the original threaded hole and surrounding structure.

The machine features a compact and lightweight design, making it easy to transport and suitable for both workshop and on-site repairs.

An accurate positioning system combined with a fast workpiece clamping mechanism allows users to quickly align the electrode and remove broken tools efficiently. The system also supports multi-angle processing, allowing the machine to work on parts in different orientations.

The integrated adaptive control system makes parameter adjustments simple and user-friendly, enabling operators to quickly configure the machine for different tool diameters and materials.

The SD-1000D and SD-600D is widely used in industries such as machining, mold manufacturing, automotive repair, aerospace, and maintenance workshops, where broken taps or drills must be removed without damaging expensive components.

Key Features

Non-Destructive Tool Removal
Uses electrical erosion to remove broken taps and tools without damaging the workpiece.

Wide Tool Compatibility
Removes broken taps, drills, reamers, screws, bolts, plugs, and other cutting tools.

Compact and Portable Design
Small size and lightweight structure make the machine easy to transport and use in different working environments.

Accurate Positioning System
Allows precise alignment and fast workpiece clamping for efficient processing.

Multi-Angle Processing
Suitable for removing broken tools from workpieces positioned at various angles.

Simple Parameter Adjustment
Adaptive control system makes machine setup and parameter adjustment quick and easy.

Commonly used in:

Metal machining workshops
Mold manufacturing
Automotive repair
Aerospace components
Equipment maintenance and repair

Technical Applications

Technical Specifications

Model	SD-600C	SD-1000C
Power Supply	220V AC	220V AC
Output Power	600 W	1000W
Electrode Range	Ø0.5 – Ø10 mm	Ø0.5 – Ø10 mm
Manual Travel	310 mm	310 mm
Automatic Travel	60 / 100 mm	60 / 100 mm
Processing Speed	+/- 1 mm/min	+/- 1.5 mm/min

Applications

Portable EDM Tap Removal Machines

Portable EDM tap removers are designed for fast, on-site tool removal.

Advantages include:

Compact and lightweight
Easy positioning on workpieces
Fast setup
Suitable for workshop and field use

These machines allow operators to recover expensive parts instead of scrapping them.

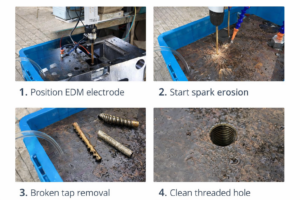

How EDM Removes a Broken Tap/Tool

The EDM process uses a copper or brass electrode and electrical sparks to gradually erode the broken tool.

Step 1 – Install the Electrode

The correct electrode size is installed in the EDM machine.

Step 2 – Align the Electrode

The machine is positioned so the electrode is aligned with the broken tap/tool.

Step 3 – Apply Cooling Water

Water is directed over the electrode and the broken tool to cool the process and flush away debris. Optionally create a dam around hole to submerge the electrode and aid in flushing debris

Step 4 – Start the EDM Process

The machine generates controlled electrical sparks between the electrode and the broken tool.

Step 5 – Spark Erosion

The sparks gradually erode the broken tool material, leaving the surrounding workpiece untouched.

Step 6 – Remove the Remaining Fragments

Once the EDM process has removed the core of the broken tap, the remaining fragments can easily be removed.

Suitable for removing broken:

Taps
Drills
Reamers
Screws/Bolts
Plugs
Other cutting tools

Accessories

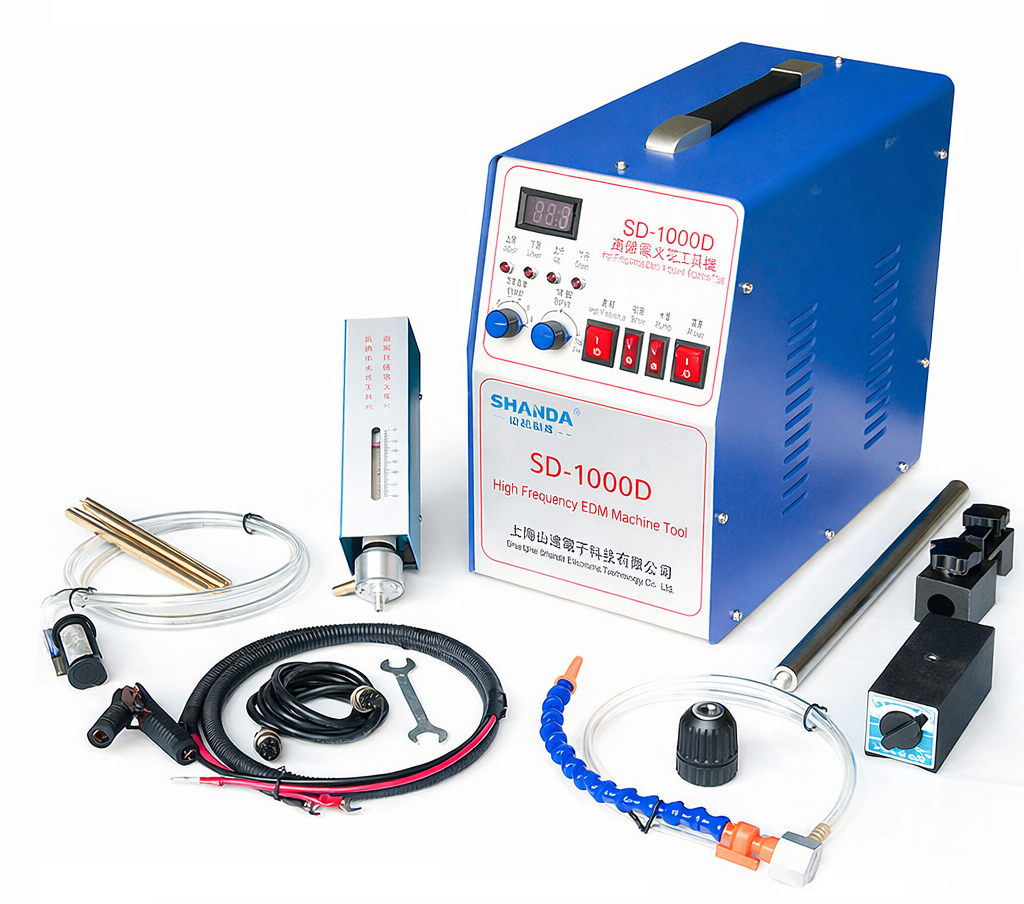

Included accessories

Electrode chuck
Servo cable
Universal faucet
Set of electrodes
Power cable
Magnetic base and cross connector

Partnership - Shanda

About the Manufacturer – Shanda

We are the exclusive distributor of Shanda products in South Africa, bringing world-class tap removal technology to the local market.

Shanda is a well-established manufacturer specializing in EDM broken tap removers and precision spark erosion equipment. With years of experience in the industry, the company has built a strong reputation for producing reliable, high-performance machines used in workshops, toolrooms, and manufacturing facilities worldwide.

Their focus on innovation, durability, and precision engineering has made them a trusted name in the field of tap removal and EDM machining solutions. Shanda machines are designed to deliver fast, accurate removal of broken taps, drills, and bolts, helping reduce downtime and improve productivity in demanding industrial environments.

Through our partnership, we are proud to offer direct access to genuine Shanda equipment, along with local support and service tailored to the South African market.

Additional information

Weight	17 kg
Dimensions	55 × 45 × 35 cm
Wattage	1000W, 600W
